Schluter®-KERDI-DRAIN is a shower drain with an integrated bonding flange that provides a large contact area for a secure connection to the KERDI waterproofing membrane at the top of the assembly.

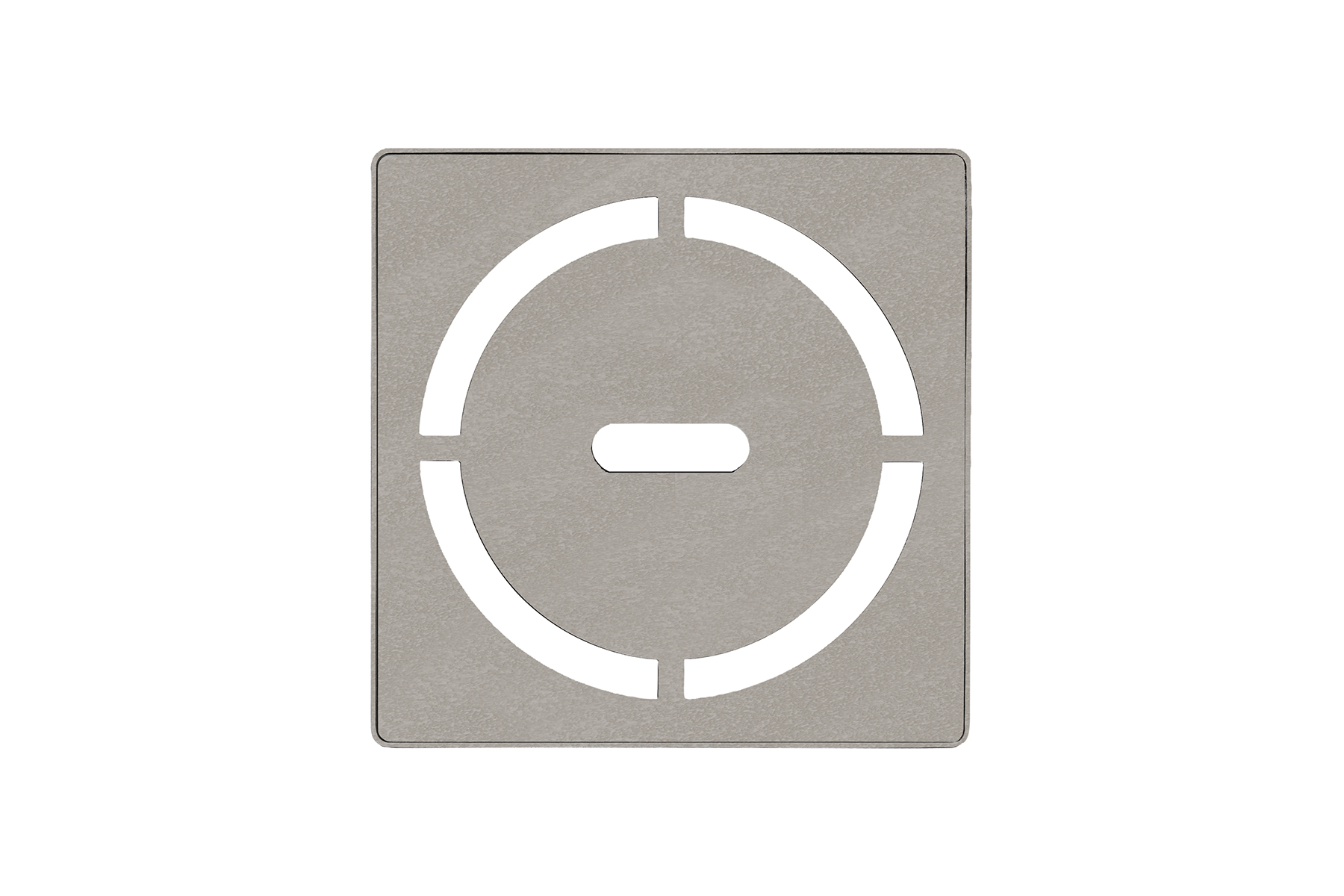

Integrated sloped bonding flange available in ABS, PVC, or stainless steel allows for a secure, topical waterproofing connection |ABS and PVC flange have a 2" or 3" outlet |Stainless steel flange has a 2" or 3" no-hub outlet or a 2" threaded outlet |Drain grate can be laterally adjusted to fit the layout of the tile grid and leveled to the tiled surface |Accommodates wide range of tile thicknesses: 1/4" (6mm) to 1-1/4" (32 mm) |Adjustable grate in stainless steel or various finishes of anodized aluminum |Tamper proof screws and wrench also available
